- 【TEST, CALIBRATE, SERVICE, TROUBLESHOOT PC MONITOR】 Handheld video monitor tester that generates a wide variety of test patterns for comprehensive testing, calibration, and repair of PC computer monitors and other video equipment
- 【WIDE SELECTION OF TEST PATTERNS AND PC MONITOR FORMAT】 8 selectable PC monitor resolution including MDA, CGA, EGA, VGA, 8514A, and SVGA; Useful video test patterns including COLOR BARS, CROSS HATCH, DOT, CHECKER, and RASTER
- 【VERSATILE AND INTELLIGENT DESIGN】 Microprocessor generated and controlled dual video outputs, Single push button selectable patterns with hold down reverse
- 【EASY TO USE, LIGHTWEIGHT, AND PORTABLE DESIGN】 AC adaptor operation or standard 9V battery operation; Ideal for on-the-bench and in-the-field testing
- 【DESIGNED AND ENGINEERED IN THE USA】Designed in the USA; Peace of mind support and warranty in the USA

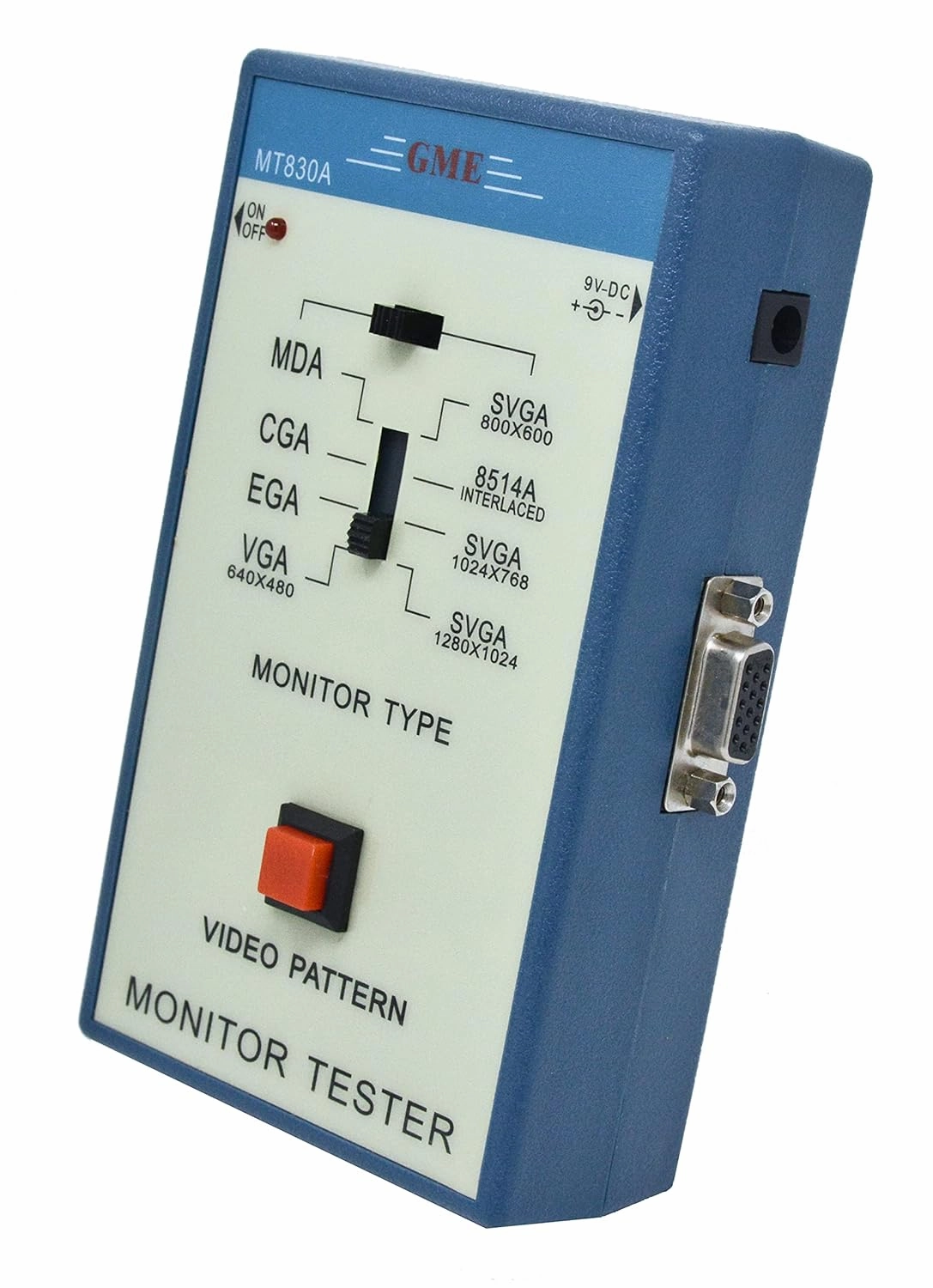

Model MT830A monitor tester is the perfect tool for those who need to quickly and easily troubleshoot, test, or align PC computer monitors. It features a wide range of testing resolutions ranging from MDA to 1280x1024. The video patterns generated by the MT830A provide accurate and comprehensive monitor troubleshooting and testing. Two separate monitor connectors output eliminates the need for any additional adapter. User friendly interface for easy operation.
Features:
- Supports 8 computer monitor scanning modes from legacy MDA to SVGA (1280x1024)
- Video test patterns including COLOR BARS, CROSS HATCH, DOT, CHECKER, and COLOR RASTER
- Single push button selectable patterns with hold down reverse
- Two separate monitor connectors: Digital/TTL9-D and Analog 15-HD
- AC adaptor power source or standard 9v battery operation
- Ideal for on-the-bench and in-the-field testing
- Easy to use, lightweight, portable, and affordable
Technical Specifications:
PC Format Supported:
- MDA
- CGA
- EGA
- VGA (640x480)
- SVGA (800x600)
- 8514A (1024x384)
- SVGA (1024x768)
- SVGA (1280x1024)
Video Patterns:
- COLOR BARS
- CROSS HATCH (choose from White, Red, Green, and Blue)
- DOT (choose from White, Red, Green, and Blue)
- CHECKER (choose from White, Red, Green, and Blue)
- RASTER (choose from White, Red, Green, and Blue)
Video Monitor Connectors:
- Digital/TTL9-D
- Analog 15-HD
Power: External 7.5V AC adapter or standard 9V battery
Dimensions: 5.7”(H) x 3.8”(W) x 1.5”(D)
Weight: 0.8 lb
Package Contents:
- One (1) - MT830A Monitor Tester Video Pattern Generator
- One (1) - User Manual
- Product Dimensions : 5.7 x 3.8 x 1.5 inches; 9.6 ounces
- Date First Available : February 17, 2022
- Manufacturer : GME TECHNOLOGY INC
