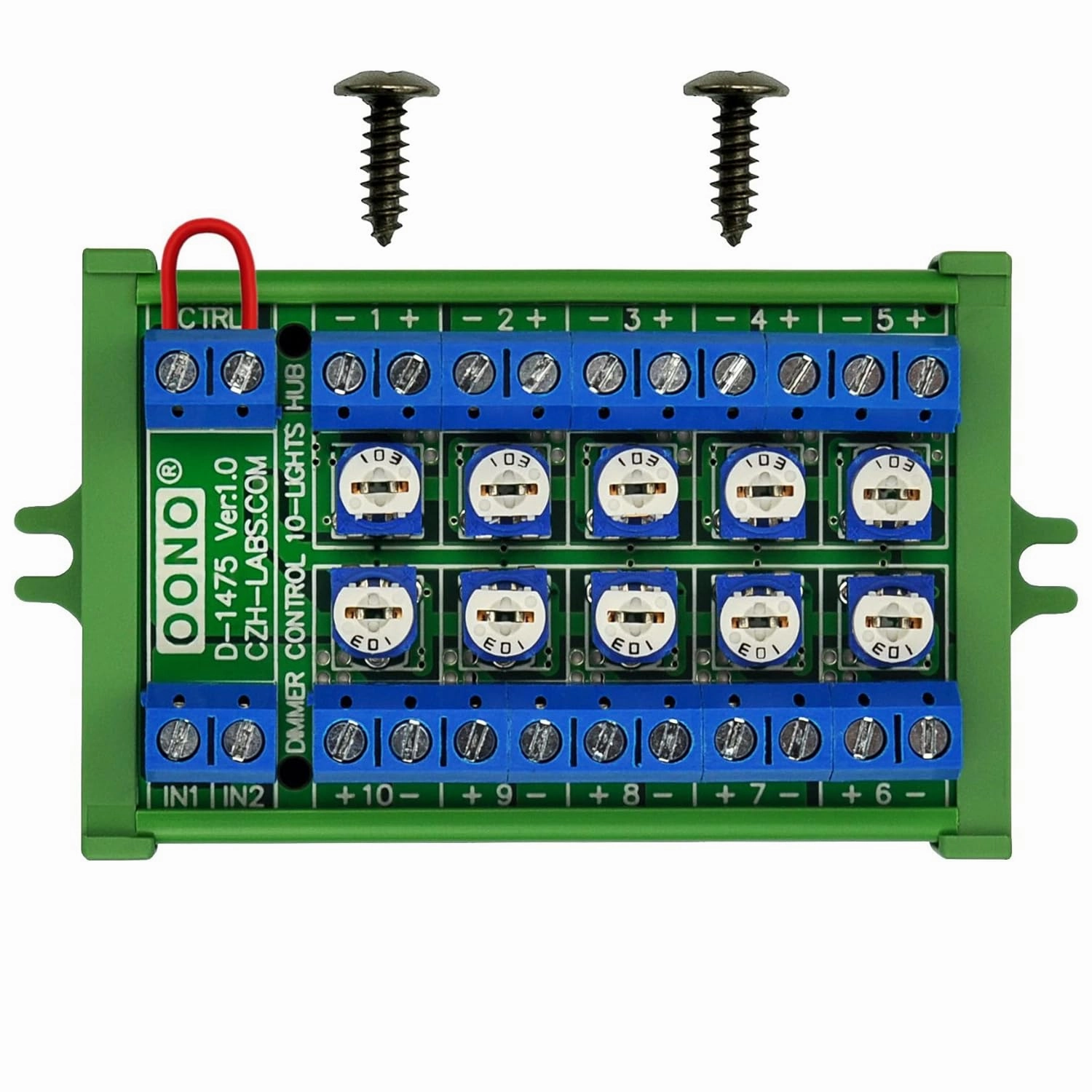

- Dimmer Control 10-Lights LED Hub Distribution Module, AC/DC 5 to 24V Input, for HO / N / O Train Model.
- 10 channels dimming output, each channel can be independently adjusted and controlled. All channel can support direct-connected LEDs, or LEDs with resistors in series. Using linear current control circuit, there is no stroboscopic problem of switching circuit to protect your eyesight.
- Support AC or DC power supply input, AC 5-18V or DC 5-24V. Each channel adjustable maximum current output 30mA(DC24V) / 20mA(DC18V) / 12mA(DC12V), minimum current 0mA(LED goes out completely).
- Support external switch to control the on/off of all channels of this module, of course, you can also use it directly by short-circuit (the short-circuit cable is attached at the factory).
- High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
- Product Dimensions : 3.35 x 3.35 x 1 inches; 0.63 ounces
- Date First Available : March 13, 2018
- Manufacturer : CZH-LABS
